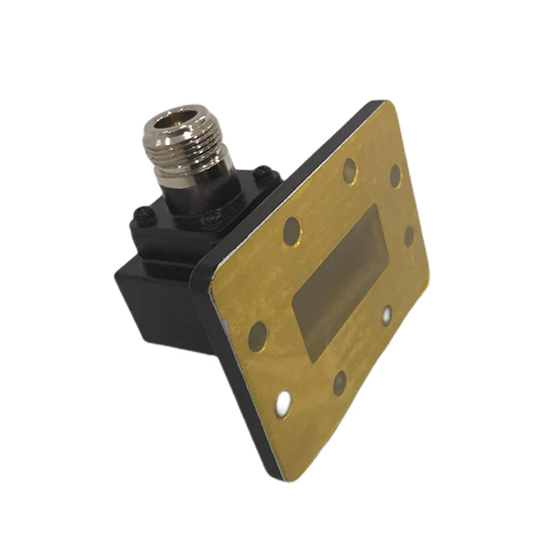

Right Angle Waveguide to Coaxial Adapter

Waveguide to coaxial adapters are widely used in microwave measurement, microwave equipment, microwave systems, and microwave engineering. They are categorized by the position of the coaxial output end into two main types: orthogonal and terminated. Standard waveguide types include rectangular, flat rectangular, medium flat rectangular, round, square, single-ridge, and double-ridge. Coaxial connector types include N, TNC, L29, SMA, 3.5mm, 1.85mm, 2.92mm, and 2.4mm. Waveguide-to-coaxial adapters with N-type terminations cover a frequency range of 0.32-18GHz, with waveguide sizes ranging from BJ3 (WR2300) to BJ140 (WR62). VSWR is ≤1.2 (maximum) and ≤1.15 (typical) across the full waveguide bandwidth. They offer a wide frequency bandwidth, a comprehensive range of specifications, and low voltage standing wave ratio (VSWR) and insertion loss. They are made of copper and aluminum, and surface treatments include silver plating, gold plating, nickel plating, passivation, and conductive oxidation. The product's dimensions, flanges, joint types, materials, surface treatment and electrical specifications can all be customized according to user requirements.

Please check our hot selling model as below, customized type is also available as per your requests.
