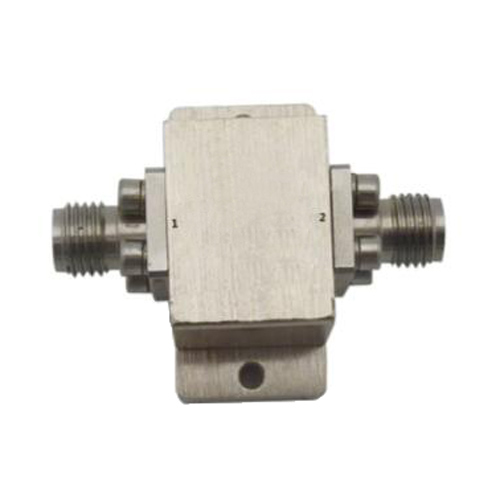

Coaxial Isolator

  • Coaxial Isolators 18-40GHz
Coaxial Isolators 18-40GHz

Coaxial Isolators 18-40GHz

  • Frequency: 18-40GHz
  • Connector: SMA, Type N, 2.92mm
  • Temperature: -30~+70°C
  • Leadtime: 1-2 Weeks
  • Product description: Coaxial Isolators 18-40GHz
  • INQUIRY

Model No.

Freq.Range
(GHz)

Insertion Loss
(dB)

Isolation
(dB)

VSWR

Forward
Power(W)

Connector
Type

Temperature
(°C)

Dimension
L*W*H(mm)

CIES-18-20

18.0- 20.0

0.5

20

1.25

60

SMA Female

-30~+70

18×13×14

CIES-24-27.5

24.25- 27.5

0.6

18

1.3

30

SMA Female

-30~+70

18×13×14

CIEK-26.5-40

26.5- 40.0

1.3

12

1.7

5

2.92mm Female

-30~+70

18×13×13
